Chichester Chair


Seat Base12mm contour formed ply
Seat FoamContour moulded cold cure foam
Back Frame12mm contour formed ply
Back Foam2" CMHR 30 reinforced edges
Arm1/2" MDF
1" chip foam CMHR 40 topper
Stand50mm by 10mm fabricated steel bar
Powder coated finish
Dimensions Width 500mm variable
Front to back 470mm variable
Height 832mm variable

CAD Drawing

Pullman Recliner

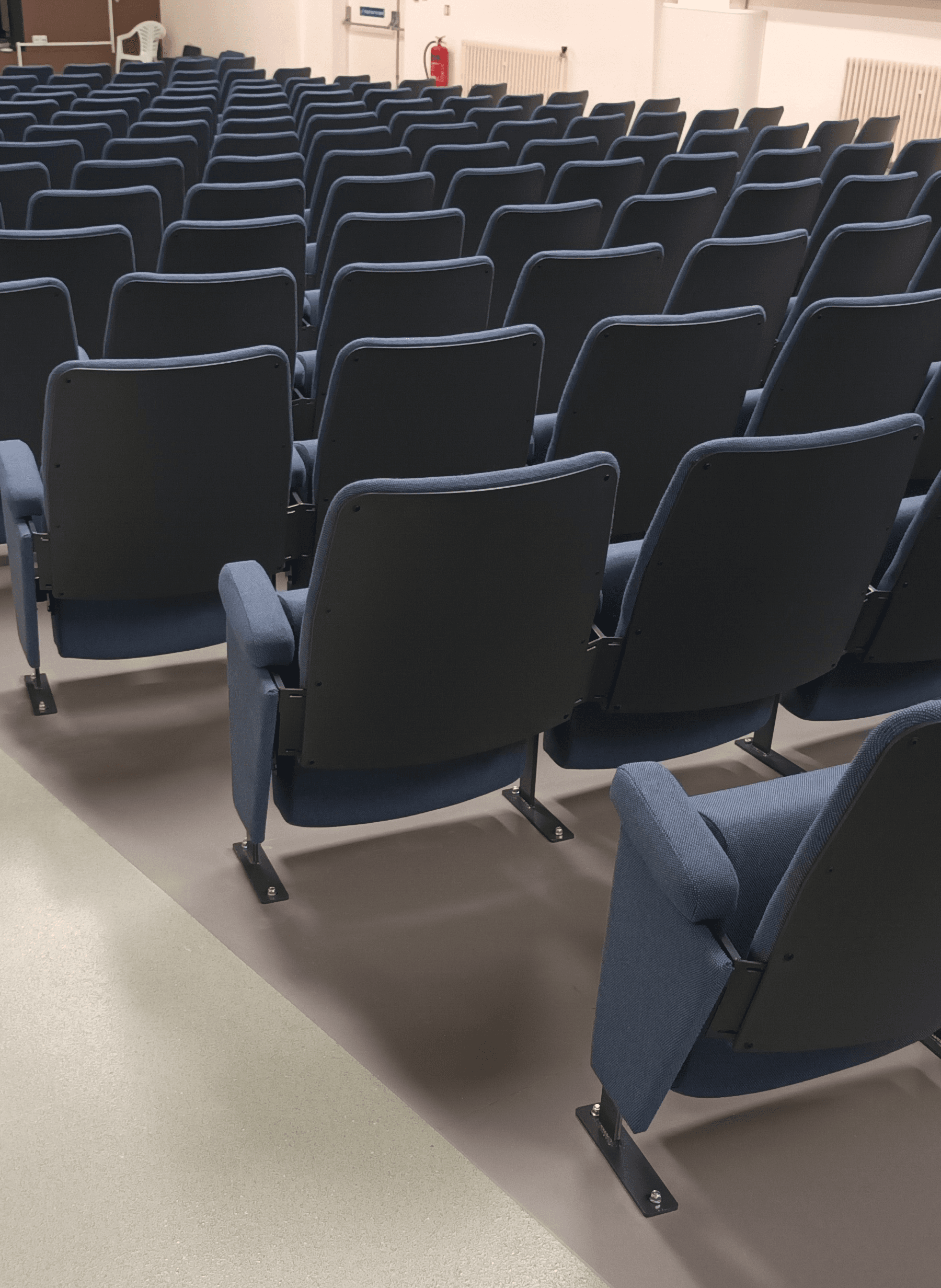

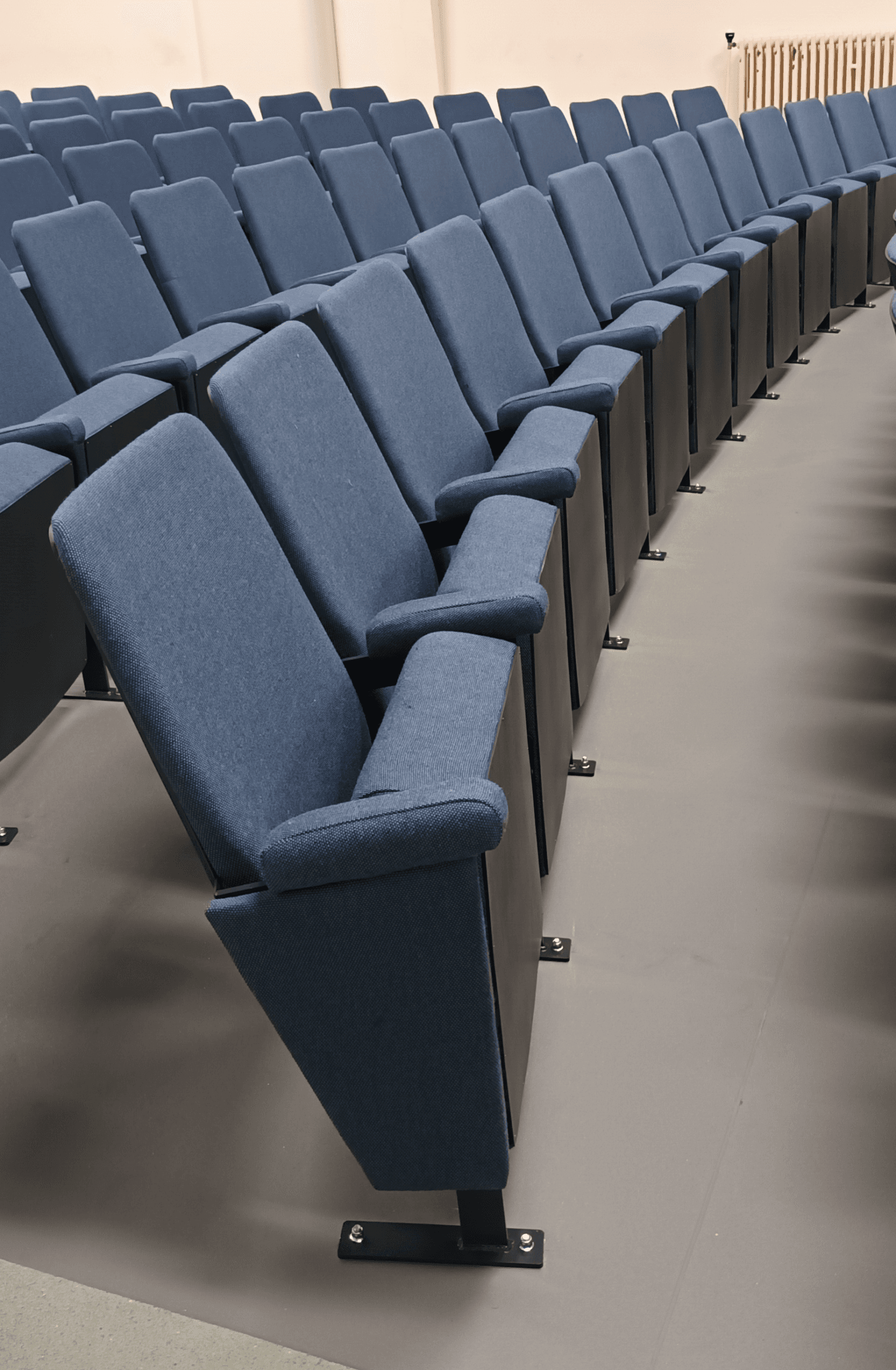

Examples of this seating
